Lemorau SMART-L

  • Smart-L 330 con Premium Pack
,

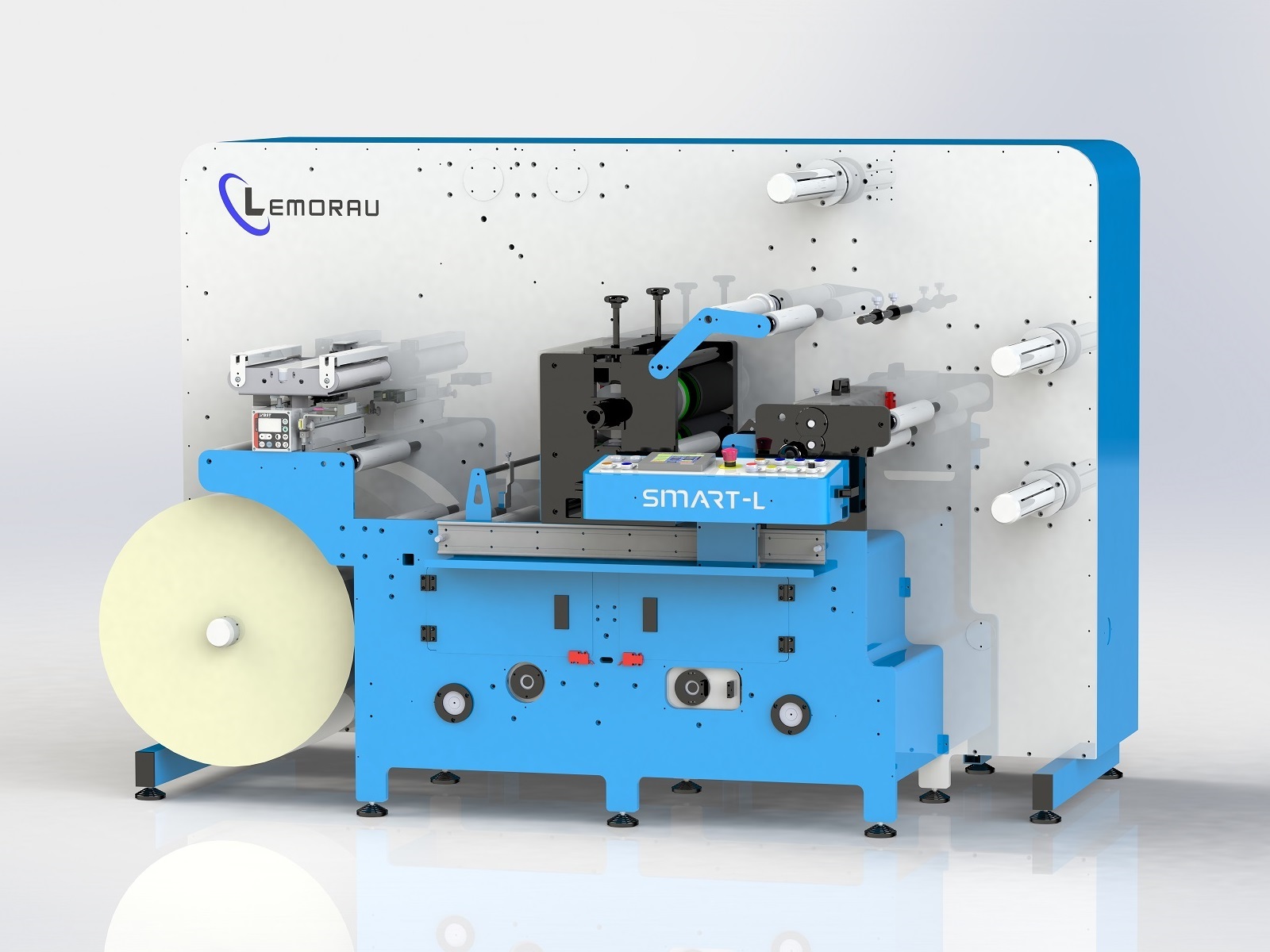

LEMORAU SMART-L
Label finishing machine



Lemorau SMART-L is our latest generation of compact finishing machines. It has short web path to reduce waste and intelligent software for a fast set up, reducing workload and increase productivity.

SMART -L is all servo driven and features a die cutting unit that operates in full rotary and semi-rotary modes.

SMART-L for a SMARTER production!

STANDARD FEATURES

  • Max speed (rotary die cutting for blank labels): 200 m/min
  • Max speed (rotary die cutting with register): 120 m/min
  • Max speed (semirotary die cutting with register): 40 m/min (80 m/min optional) depending on job
  • Web width 250, 330, 400, 450 mm (10, 13, 16, 18″) or custom
  • Electronic Counter (labels / meters / rolls/ total meters / total labels / diameter)
  • 250 Job memory for easy and quick job set ups
  • Web and matrix break detection
  • QRC (Quick Remote Connection) diagnostic system
  • Automatic web tension control system by servo motors – Constant and Taper tension
  • Foot pedal to jog the machine
  • Multi language HMI touch screen

UNWINDER

  • Sbobinatore servomotorizzato con Ø max. 700 mm. (27,5”)
  • Mandrino pneumatico Ø 76 mm (3”)
  • Fermata automatica a fine bobina, programmabile
  • Sbobinamento in senso orario ed antiorario
  • Piano di giunta regolabile, con braccetti pneumatici
  • Guidabanda elettronico

DIE CUTTING

  • Operates in full rotary or semirotary mode
  • Die repeats in rotary mode: min. 203,20 - max. 431,8 mm (8 - 17″)
  • Standard gears for magnetic cylinders are 1/8 CP, straight teeth, angle 20 degrees
  • Recommended die repeat in semirotary mode (Z130): 82,55 – 330,20 mm
  • Servo driven buffer for semirotary web movement
  • Deflaction funtion for existing flexigle dies in semirotary mode
  • Servo driven waste rewinder max. Ø 600 mm (24”)

DIE CUTTING WITH SPEED PACK (optional)

  • Operates in full rotary or semirotary mode
  • Die repeats in rotary mode: min. 203,20 - max. 603,25 mm (8 – 23,75″)
  • Standard gears for magnetic cylinders are 1/8 CP, straight teeth, angle 20 degrees
  • Recommended die repeat in semirotary mode (Z190): 82,55 – 482,60 mm
  • Servo driven buffer for semirotary web movement
  • Deflaction funtion for existing flexigle dies in semirotary mode
  • Servo driven waste rewinder max. Ø 600 mm (24”)

SLITTING

  • Set of 6 circular knives with lateral adjustment – Can be added more as optional
  • Razor knives unit – as optional

REWINDING

  • Servo driven equipped with 2 interchangeable pneumatic rewinders
  • Equipped with air shafts Ø 76 mm (3”) - other sizes as optional
  • Semi-automatic rewinding
  • Clockwise / counterclockwise rewinding (labels in / labels out)
  • Max. rewinder Ø 580 mm (23“) using single rewinder / 350 mm (13,8 “) using double rewinder

OPTIONAL EQUIPMENT

BASE PACK

  • Additional mandrels in customized sizes
  • Additional circular knives
  • Air trim removal
  • Anvil roll with adjustable gap
  • Bearer wipers
  • Clear on clear sensor
  • Linerless/with liner lamination
  • Pressure gauges
  • Razor slitting knives
  • Speed Pack Semi-rotary die cut up to 80m/min
  • Waste presser
  • Industry 4.0 kit

PREMIUM PACK

  • Additional rewinder when having Turret Rewinding
  • Automatic positioning of slitting knives
  • Cold foil
  • Easy strip waste rewinder
  • Rotary/semi-rotary UV flexo module
  • Turret rewinding
